R1.010–R1.020

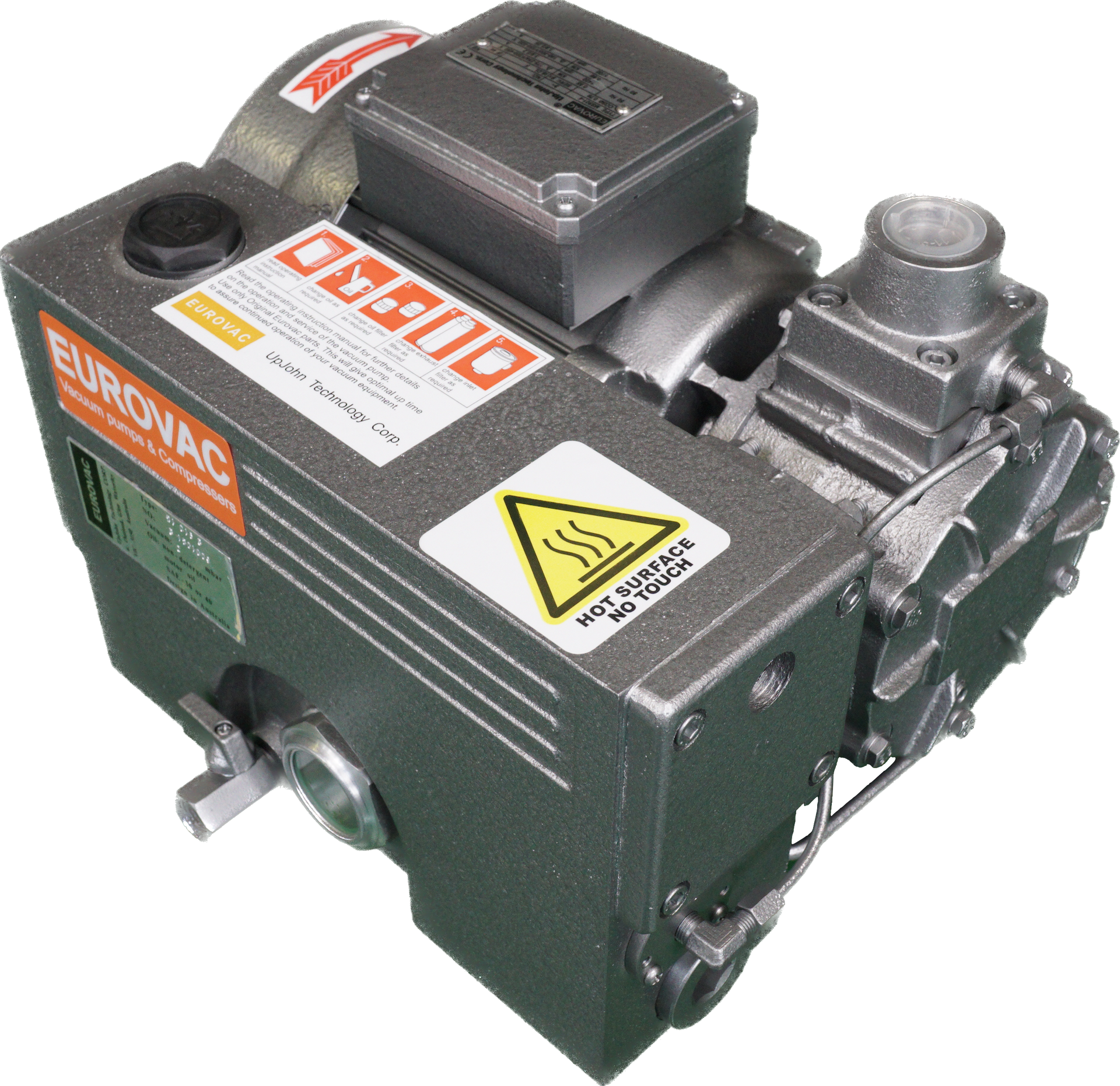

Oil Lubricated Rotary Vane Vacuum Pump
1 of 2 images
Technical specifications
| Type | Air Flow (m³/hr) | Motor Power (kW) | Vacuum (mbar) | Speed (RPM) | Noise dB(A) | Oil (L) | Weight (kg) | Port Size (Inch) |
|---|---|---|---|---|---|---|---|---|
| R1.010 | 10 / 12 | 0.37 / 0.44 | 0.5 | 1420 / 1710 | 61 | 0.8 | 24 | 3/4 |
| R1.016 | 16 / 19.2 | 0.55 / 0.66 | 0.5 | 1420 / 1710 | 61 | 0.8 | 27.5 | 3/4 |
| R1.020 | 20 / 24 | 0.75 / 0.9 | 0.5 | 1430 / 1720 | 61 | 0.8 | 29 | 3/4 |
